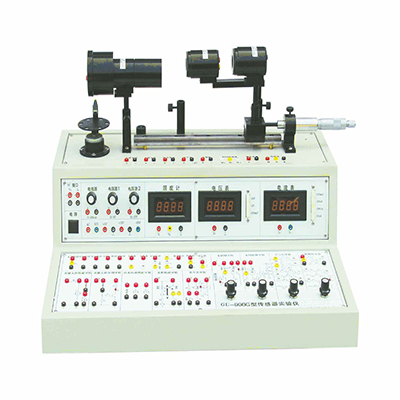

GL998G photoelectric sensor test bench product Introduction

GL998G Photoelectric sensor test bench is a photoelectric teaching experiment instrument launched by our company to meet the needs of photoelectric teaching content in majors such as optoelectronics, information engineering, and physical electronic technology. It is the basic equipment for conducting experiments on the characteristics and applications of photosensitive devices and photoelectric sensors, and is the basic experimental instrument for optoelectronic technology.

Ⅰ、Configuration of GL998G Photoelectric sensor test bench

 1.Silicon photocell (VOC: 300mv, ID < 1×10-8μA, ISC: 5μA, λ: 300-1000nm, λp: 880nm)

 2.Photodiode (Vr: 20v, ID < 0.1μA, IL: 50μA, tr tf: 10ns λp: 880nm)

 3.Phototransistor (VCEO: 50v, ID < 0.1μA, IL: 5mA, tr tf: 15ns λp: 880nm)

 4.Photoresistor (cds photoresistor, rated power: 100mW, dark resistance ≥ 1MΩ, tr 20mS, tf 30mS, λp: 580nm)

 5.Reflective optocoupler (input: IFM=20mA, VR=5V, VF=1.3V output: VCEO=30V, ICEO=0.1μA, VCES=0.4V transmission characteristics: CTR (%) = 5, tr tf: 5us)

 6.Infrared pyroelectric probe

 7.Light meter probe

 8.Y-type optical fiber

 9.Semiconductor laser (wavelength: 635um, power 1-3mw)

 10.Ordinary incandescent lamp

 11.Ordinary light emitting diode

 12.Infrared emitting diode (VR : 5V, VF: 1.4V, IR: 10uA, PO: 2mw)

 13.PSD position sensor

Ⅱ、GL998G Photoelectric sensor test bench experimental project

 1.Photodiode characteristic experiment

 2.Photoresistor experiment

 3.Phototransistor characteristic experiment

 4.Photoelectric basic knowledge experiment

 5.Photocell experiment

 6.Transmission photoelectric switch experiment

 7.Infrared reflection photoelectric switch experiment

 8.Optical fiber displacement sensor experiment

 9.PSD position sensor experiment

 10.Light source and light modulation and demodulation experiment

 11.Pyroelectric infrared sensor experiment
