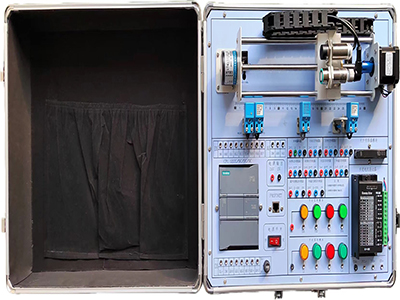

GLGJ-20 industrial sensor application training equipment

The GLGJ-20 industrial sensor application training equipment collects sensor signals such as inductive sensors, capacitive sensors, electromagnetic sensors, photoelectric sensors, fiber optic sensors, inductive analog sensors, ultrasonic sensors, force sensors, acceleration sensors, etc. through PLC control and performs indication control.

1. The platform consists of a transmission mechanism, a motor power unit, a control mechanism, a sensor detection unit, a position feedback and positioning mechanism, a terminal unit with protection, etc.; it can distinguish multiple components.

2. The platform consists of a slide rail, an inductive sensor, a capacitive sensor, an electromagnetic sensor, a photoelectric sensor, a fiber optic sensor, an inductive analog sensor, an ultrasonic sensor, etc.

3. The components are industrial grade, and all sensors, actuators, and controller interfaces are required to be open.

4. During the training, the system hardware wiring part is completed by the students. It has a misoperation protection circuit to ensure that the components will not be damaged in the case of misoperation, so that students can train repeatedly.

5. The use of small actuators makes the entire system compact, beautiful, and modular, which is convenient for transportation and multiple layouts in the training room.

6. This industrial sensor application training equipment is equipped with a full range of sensors, including inductive sensors, capacitive sensors, electromagnetic sensors, photoelectric sensors, fiber optic sensors, inductive analog sensors, ultrasonic sensors, force sensors, acceleration sensors, etc. The system control methods are diverse, and the sensor signals are collected and indicated through PLC control. The host requires the matching Siemens 1200 series PLC. The device is equipped with a network communication interface.

7. Experimental projects of this industrial sensor application training equipment:

 1) Stepper motor control experiment;

 2) Application of inductive sensors;

 3) Application of capacitive sensors;

 4) Application of electromagnetic sensors;

 5) Application of photoelectric sensors;

 6) Application of fiber optic sensors;

 7) Application of inductive analog sensors;

 8) Application of ultrasonic sensor technology;

 9) Application of force sensors;

 10) Application of acceleration sensor technology.
