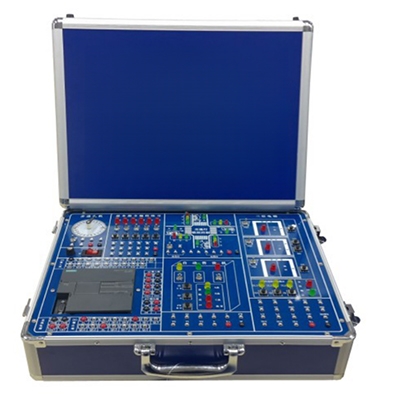

GLPLC-XS-01 PLC experiment box

The host of this PLC experiment box is flexible to choose, easy to store and manage, and supports the selection of Siemens series, Mitsubishi series or Omron PLC host. The host has excellent performance and reliability, which can fully meet the diversified needs of higher education in PLC teaching and provide strong guarantee for high-quality teaching.

Ⅰ、Technical performance and parameters

1. Working power supply: single-phase three-wire, 220V±10% 50Hz

2. Device capacity:<0.5KVA

3. Working environment: -10-55℃

4. Relative humidity:<85% (25℃)

5. System configuration:

①14-way switch input;

②10-way digital output;

③2-way analog input;

Ⅱ、Configuration

1. Programmable controller (1214C transistor)

2. Programmable controller basic instruction programming exercise module

3. Traffic signal light PLC automatic control experiment module

4. Fully automatic washing machine PLC automatic control experiment module

5. LED PLC automatic control experiment module

6. PLC automatic control experiment module for artistic lanterns

7. PLC automatic control experiment for star corner start

8. PLC automatic control experiment for unmanned vending

9. Water tower automatic water supply experiment

10. Automatic feeding and loading experiment

11. Buzzer control experiment

12. Three-story elevator module

13. Training wire

14. Training guide

15. Special programming cable

16. AC power cord

17. Power module

III、Experimental content of  PLC experiment box

1. 1200PLC recognition and familiarization experiment

2. Traffic signal light PLC automatic control experiment

3. Fully automatic washing machine PLC automatic control experiment

4. LED PLC automatic control experiment

5. PLC automatic control experiment of artistic lantern shape

6. PLC automatic control experiment of star corner start

7. PLC automatic control experiment of unmanned vending machine

8. Water tower automatic water supply experiment

9. Automatic feeding and loading experiment

10. Answer machine control experiment

11. Basic instruction programming practice of programmable controller

12. Ethernet network control experiment based on 1200PLC

13. Three-story elevator automatic control experiment

IV、computer

CPU: not less than 14th generation I5:

Display: not less than 27 inches, resolution 1920*1080dpi, meet the first-level energy efficiency, response time ≤5ms;

Hard disk: equipped with no less than 2T+512GB solid state hard disk;

Configured power supply, wired keyboard, chassis, wired mouse, etc. meet relevant standards

Complete machine certification requirements: 3C certification

Synchronous PC version:
