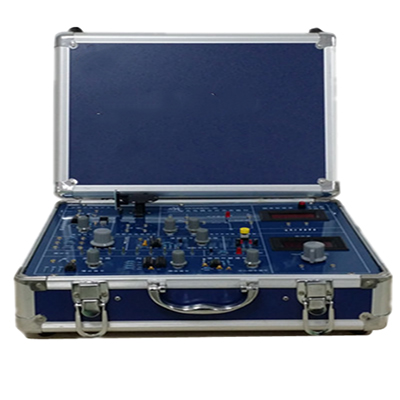

GL-GD-OH photoelectric coupling switch experiment box

Ⅰ、Product Introduction

GL-GD-OH photoelectric coupling switch experiment box realizes the photoelectric switch function by using photoelectric coupler, and uses photoelectric coupling device to measure the rotation speed of the object, so as to understand and master the principle and use method of photoelectric coupler.

The realization of photoelectric switch and the measurement of object rotation speed are realized by two methods: the opposite photoelectric coupler and the reflective photoelectric coupler.

Ⅱ、Knowledge points

Reflective optical switch, opposite-beam optical switch, optical modulation and demodulation

Ⅲ、Involved courses

Circuit principle, analog electronic technology, photoelectric detection technology, sensor principle, optoelectronic technology

Ⅳ、Experimental content of photoelectric coupling switch experiment box

1. Opposite-beam optical switch experiment (non-modulation)

2. Reflective optical switch experiment (non-modulation)

3. Optical modulation experiment

4. Phase-locked loop demodulation experiment

5. Opposite-beam optical switch experiment (modulation)

6. Reflective optical switch experiment (modulation)

7. Opposite-beam optical switch speed measurement experiment

8. Reflective optical switch speed measurement experiment

9. Opposite-beam photoelectric switch volt-ampere characteristic experiment

10. Reflective photoelectric switch volt-ampere characteristic experiment

11. Opposite-beam photoelectric switch time response experiment

12. Reflective photoelectric switch time response experiment

13. Opposite-beam photoelectric switch current transfer ratio experiment

14. Reflective photoelectric switch current transfer ratio experiment

Synchronous PC version:

GL-GD-OH photoelectric coupling switch experiment box   https://www.biisun.com/home/category/detail/id/168.html
