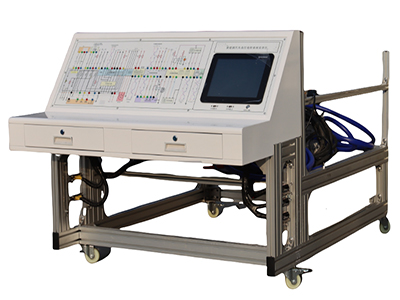

New Energy Vehicle High Voltage Safety Training Platform

Ⅰ、Configuration

1. Contains lithium iron phosphate battery pack, BMS control module, on-board charger, DC/DC module, PDU high-voltage controller (total positive relay, charging relay, pre-charge relay, pre-charge resistor, Hall sensor, high-voltage maintenance switch), key switch, national standard charging gun including socket, auxiliary battery, discharge simulation load and high and low voltage wiring harness assembly, etc.;

2. The equipment is configured with a detection control panel with circuit diagram and schematic diagram. The panel uses 4mm thick aluminum-plastic plate as the bottom plate. The overall panel has clear image, not easy to deform, long life, and not easy to fade. Panel size: length * width 40*40mm, aluminum profile bottom frame 25mm thick paint-free desktop panel.

II、Training projects

1. Composition and structure of high-voltage and low-voltage systems;

2. DC/DC conversion and working principle;

3. AC/DC conversion and working principle;

4. Function and working principle of high-voltage interlocking;

5. Principles of high-voltage electrical systems, logic control relationships such as power-on, power-off, and charging.
