GL-HXD  Endless belt detection training equipment

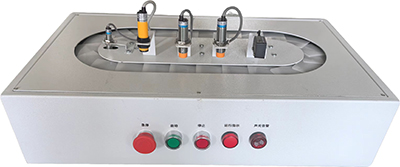

Ⅰ、The Endless belt detection training equipment is derived from the ring conveyor belt model of the airport baggage delivery system. It has a variety of sensors such as shielded infrared detection, reflective infrared detection, Hall, color recognition, capacitive, and inductive sensors. Combined with the Modbus multi-channel data acquisition card, it completes the dynamic display of the industrial configuration software based on the ring conveyor belt. At the same time, it also realizes the host computer counting and dynamic real-time display, simulating the entire movement process of the ring conveyor belt. It is an engineering simulation experiment with practical application value.

Ⅱ、Configuration:

1. The industrial-grade sheet metal processing frame structure is adopted, and the device model is designed according to the industrial-grade ring conveyor line operation technology ratio.

Specifically include:

2. Equipped with a ring-shaped conveyor belt

3. DC motor 3

4. Various sensor support frames

5. Speed detection disk

6. Motor speed regulator

7. Color blocks, objects to be measured, etc.

8. Industrial machine vision: CMOS industrial camera, USB driver-free; more than 2 million pixels; photo frame rate: 60 frames/second; lens: focal length 50mm, adjustable focal length;

9. Sensor configuration; infrared beam sensor (switch output); infrared reflection sensor (switch output); Hall speed sensor (switch output); color mark sensor (switch output)

III、Experimental projects of this Endless belt detection training equipment

It can complete experimental training projects such as automatic transmission, color recognition, workpiece counting, and emergency parking.

Synchronous PC version:

GL-HXD  Endless belt detection training equipment   https://www.biisun.com/home/category/detail/id/180.html
