GL3000 Sensor comprehensive experimental platform

Ⅰ、Product Overview

The GL3000 sensor comprehensive experimental platform  is a modular new product newly launched on the basis of our company's many years of production of sensor technology teaching experimental devices to meet the professional needs of different categories and levels.

The GL3000 sensor comprehensive experimental platform is mainly used for experimental teaching of courses such as "sensor principle", "automatic detection technology", "non-electrical quantity electrical measurement technology", "industrial automation instrumentation and control", and "mechanical quantity electrical measurement" offered by major and technical colleges.

Most of the sensors used in the GL3000 sensor comprehensive experimental platform are industrial structures, which is convenient for students to strengthen their understanding of book knowledge, and in the process of the experiment, through signal pickup, conversion, and analysis, cultivate students' basic operating skills and hands-on ability as a scientific and technological worker.

Ⅱ、Product composition

 1. Experimental platform composition

The GL3000 sensor comprehensive experimental platform consists of eight parts: main chassis, three sources (vibration source, temperature source, rotation source), sensor and corresponding experimental template, data acquisition card and processing software, and experimental table.

 2. Main chassis part

Provides eight kinds of highly stable DC regulated

power supplies: ±15V, +5V, ±2V~±10V adjustable, +2V~+24V adjustable; the main control panel is also equipped with voltage, frequency, and speed display meters. Audio signal source (audio oscillator) 1KHz~10KHz (adjustable); low-frequency signal source 1Hz~30Hz (adjustable); air pressure source 0-20kpa adjustable, high-precision temperature adjustment instrument (control temperature accuracy ±0.5℃); RS232 computer serial interface; flow meter, ammeter, illumination meter.

 3. Three-source generator

Equipped with vibration source 1HZ-30HZ (adjustable); rotation source 0-2400 rpm (adjustable); heating source<150℃ (adjustable).

 4. Sensor: See the table below for details

 5. Experimental module part: See the table below for details

 6. Data acquisition card and processing software

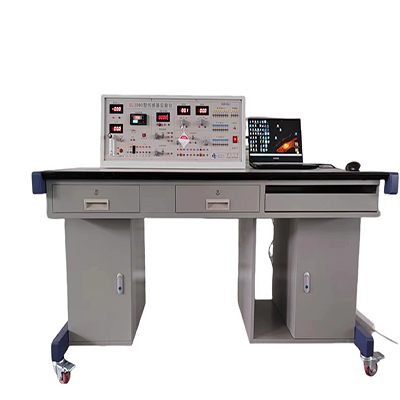

 7. Experimental table: The size of the special experimental table is 1600×800×750 (mm), and a display or oscilloscope is reserved on the experimental table. The two special cabinets of the experimental table can be used to place the experimental template and the computer host and keyboard respectively.

 8. Multimedia 3D animation demonstration software:

Note: The ones with * are optional

Ⅲ、Product features

 1. The structure of the sensor comprehensive experimental table tends to the industrial detection sensor structure. The sensor combines qualitative and quantitative analysis with a certain degree of accuracy, which is more convenient for computer experimental characteristics analysis.

 2. The instrument is equipped with temperature source, gas source, vibration source and rotation source. The sensor is equipped with corresponding experimental templates for easy operation and management. After the experiment is completed, it can be placed in the cabinet of the experimental table and the sensor box respectively. It can add enhanced sensors and their templates according to teaching needs, or make special sensor templates.

 3. Various public sources can also be used for students' course design, graduation design and some development experiments; the power supply and signal source are equipped with protection circuits to ensure that students will not easily damage the equipment after misoperation and ensure the safety of students.

IV、Product technical indicators

 1. Resistive strain sensor, resistive strain test template: range 0-500g accuracy ±0.5% (single arm, half bridge can switch wiring arbitrarily)

 2. Diffused silicon pressure sensor, pressure sensor test template: range 4-20kpa accuracy ±1%

 3. Differential transformer, differential transformer test template: ±4mm ±2%

 4. Capacitive sensor, capacitive sensor test template: ±2.5mm ±3%

 5. Hall displacement sensor, Hall sensor test template: ±1mm ±3%

 6. Hall speed sensor: 2400 rpm ±0.5%

 7. Magnetoelectric sensor: 2400 rpm ±0.1%

 8. Piezoelectric sensor/piezoelectric sensor test template

 9. Eddy current displacement sensor, eddy current displacement test template: 1mm ±2%

 10. Fiber optic displacement sensor, fiber optic displacement test template: 1mm ±5%

 11. Photoelectric speed sensor: 2400 rpm ±0.5%

 12. Temperature sensor experiment template/temperature sensor experiment: Normal temperature -120℃ ±3%

 13. 13. Pt100 platinum resistor: Normal temperature -120℃ ±3% three-wire system

Ⅴ、Experimental projects

 1. Metal foil strain gauge single-arm bridge performance experiment

 2. Metal foil strain gauge half-bridge performance experiment

 3. Metal foil strain gauge full-bridge performance experiment

 4. Metal foil strain gauge single-arm, half-bridge, full-bridge performance comparison experiment

 5. Metal foil strain gauge temperature effect experiment

 6. Application of DC full bridge - electronic scale experiment

 7. Application of AC full bridge - vibration measurement experiment

 8. Pressure measurement experiment of diffused silicon piezoresistive pressure sensor

 9. Performance experiment of differential transformer

 10. Effect of excitation frequency on differential transformer characteristics

 11. Experiment on zero-point residual voltage compensation of differential transformer

 12. Application of differential transformer - vibration measurement experiment

 13. Experiment on displacement characteristics of capacitive sensor

 14. Experiment on dynamic characteristics of capacitive sensor

 15. Experiment on displacement characteristics of Hall sensor under DC excitation

 16. Experiment on displacement characteristics of Hall sensor under AC excitation

 17. Experiment on Hall speed measurement

 18. Experiment on speed measurement of magnetoelectric speed sensor

 19. Experiment on vibration measurement of piezoelectric sensor

 20. Experiment on displacement characteristics of eddy current sensor

 21. Experiment on the influence of material of the object to be measured on the characteristics of eddy current sensor

 22. Experiment on surface of the object to be measured

 23. Experiment on the influence of volume size on the characteristics of eddy current sensor

 24. Experiment on measuring rotation speed with eddy current sensor*

 25. Experiment on displacement characteristics of optical fiber sensor

 26. Experiment on measuring vibration with optical fiber sensor

 27. Experiment on rotation speed measurement with photoelectric rotation speed sensor

28. Other solutions for measuring rotation speed with photoelectric sensor*

 29. Experiment on temperature characteristics of integrated temperature sensor

 30. Experiment on temperature characteristics of platinum resistor

 31. Experiment on temperature characteristics of copper resistor*

 32. Experiment on temperature measurement with K-type thermocouple

 33. Experiment on temperature measurement with E-type thermocouple

 34. Experiment on temperature measurement with J-type thermocouple*

 35. Thermocouple cold end temperature compensation experiment*

 36. Principle experiment of gas sensor sensitive to alcohol

 37. Humidity sensor experiment

 38. Data acquisition system experiment (static example)

 39. Data acquisition system experiment (dynamic example)

 40. Photoresistor experiment

 41. Photodiode characteristic experiment

 42. Phototransistor characteristic experiment

 43. Photoelectric switch experiment

 44. Infrared photoelectric switch

 45. Photocell illumination characteristic experiment

 46. Additional experiment - phase shifter experiment

 47. Additional experiment - phase sensitive detector experiment

Note: The experiments marked with * are thinking experiments, which are built by students themselves

Synchronous PC version:
