Process control system training equipment

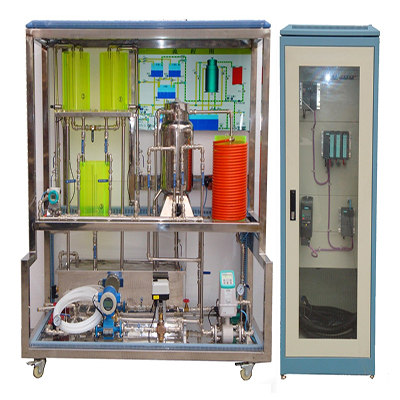

PCS-C process control system experimental equipment is divided into four parts: upper control layer system, experimental object layer, detection sensor, transmission, execution equipment, and upper control software. System features: The whole system is placed on a movable test bench, which is compact and the test device occupies a small area.

PCS-D process control system experimental equipment can realize the experiment and training functions of pressure, flow, liquid level fixed value adjustment system, as well as ratio, cascade, feedforward-feedback and other complex adjustment systems. The controlled object is provided with an interface control box, the power supply and signal of the control box are separated, and the control box includes a power supply device, a frequency converter, an intelligent regulator and basic protection devices of the equipment, and provides an expansion interface.

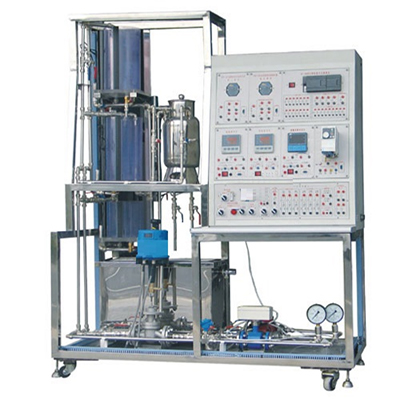

The PCS-F process control system training equipment is a set of experimental equipment based on PCS fieldbus control. It is a multifunctional experimental device integrating automation instrument technology, computer technology, communication technology, and automatic control technology. The system includes thermal parameters such as flow, temperature, and liquid level, and can realize various control forms such as system parameter measurement, single-loop control, cascade control, feedforward control, and ratio control.
