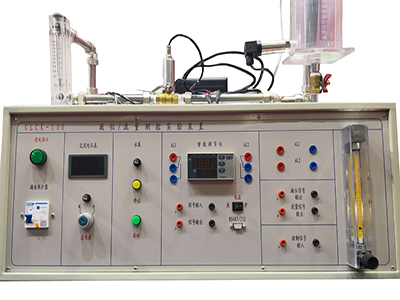

GLCK-100 Liquid Level/Flow Measurement and Control Experimental Equipment

I、Equipment Introduction

The important structural features of this liquid level/flow measurement and control experimental equipment are small, compact, beautiful and safe. The equipment can form a closed-loop PID adjustment liquid level control system or a PID adjustment flow control system for flow and liquid level (single volume) (double volume), and communicate with the host computer through the communication port of the intelligent regulator. The control parameters can be set in the intelligent control instrument and the host computer. The host computer software uses MCGS industrial control configuration software to realize online detection, control, parameter modification, data storage and analysis, real-time curve and historical curve display and printing. This equipment has multiple safety protections and provides IEC standard signals and related test points for single-chip microcomputer access for programming experiments.

This liquid level/flow measurement and control experimental equipment uses industrial-grade sensors and IEC standard signal outputs. It is suitable for measurement and control, automation, computer, electromechanical control, information engineering, mechatronics and other majors. This equipment is placed on the experimental table and can operate experiments independently or connect to the host computer.

Ⅱ、Basic configuration

1. Micro turbine flowmeter 1

2. Liquid level pressure sensor 2

3. Intelligent industrial regulator 1

4. RS485/RS232 converter 1

5. Water pump control module 1

6. Micro plexiglass experimental water tank 1

7. Medium-sized stainless steel water storage tank 1

8. Manual valve 5

9. Micro water pump 1

10. Controller 1

11. OLED five-in-one meter 1

12. Water mark 1

13. Experimental software CD 1 set

Ⅲ、Technical indicators

1. Power supply: AC220V±10% 50HZ±5% 1A with good grounding

All pipes are made of stainless steel, with inner inch heat insulation film process. All pipe joints are made of stainless steel nickel-plated material. Guaranteed to be rust-free and non-deformed within 20 years of use.

2. Instrument input and output signals comply with IEC standards

3. Liquid level transmitter Range: 0-30cm (intelligent instrument parameter DIH=30)

Output signal: 4-20mADC two-wire DC24V Accuracy 0.5 level

4. Turbine flowmeter Range: 0-300L/min (intelligent instrument parameter DIH=300) Output signal: pulse output Accuracy level 1

5. Frequency/current transmitter Output signal: 4-20mADC

6. Industrial artificial intelligence regulator Accuracy 0.5 grade

7. Dimensions:

Experimental control box size: 500mm (length) × 400mm (width) × 1200mm (height)

8. Weight: about 15kg

IV、Experimental content

1. Understanding and use of pressure transmitters

2. Single-volume water tank characteristics experiment

3. Single-volume liquid level closed-loop control system experiment

4. Double-volume water tank closed-loop control system experiment

5. Turbine flow transmitter working principle understanding experiment

6. Liquid level PID intelligent instrument control experiment

7. Liquid level PID host computer configuration control experiment

8. Flow PID intelligent instrument control experiment

9. Flow PID host computer configuration control experiment

10. Use MCGS configuration software and experimental equipment to conduct configuration engineering programming training experiment
